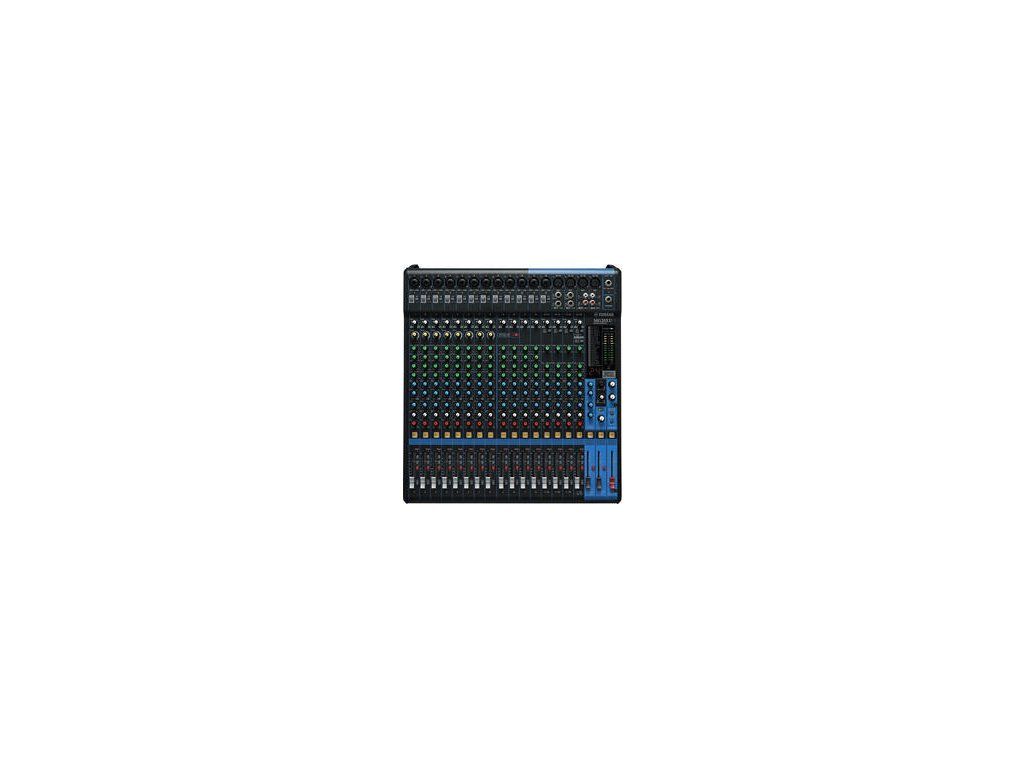

Yamaha MG20XU

Product detailed description

20-channel mixing console from MG series with built-in USB audio interface and effects for performances, lectures or recordings. It features max 16 mic/20 line inputs (12 mono + 4 stereo) in 4 GROUP buses + 1 stereo bus, equipped with D-PRE mic preamps with an inverted Darlington circuit, a switchable 48 V Phantom power and a 3-band EQ; and USB port that is also capable of providing two channels in and two channels out to PC at up to 24-bit/192 kHz. Console is also equipped with 1-knom compressors, a PAD switch on mono inputs, stereo XLR balanced outputs for connecting PA system or speakers; 1/4" headphone output; and 4 aux (including FX). It also provides high-grade SPX effects with 24 programs (including reverbs, delays, flanger, chorus, tremolo, auto-wah, phaser, or distortion). Console works with the iPad (2 or later) through the Apple iPad Camera Connection Kit (not included), and includes Cubase AI DAW software download version (Cubasis LE for iPad is available at App Store). Rack-mount kit and AC power cord are also included. Dimensions: 444 x 130 x 500 mm. Weight: 7.1 kg.
