Yamaha MG10XU

Product detailed description

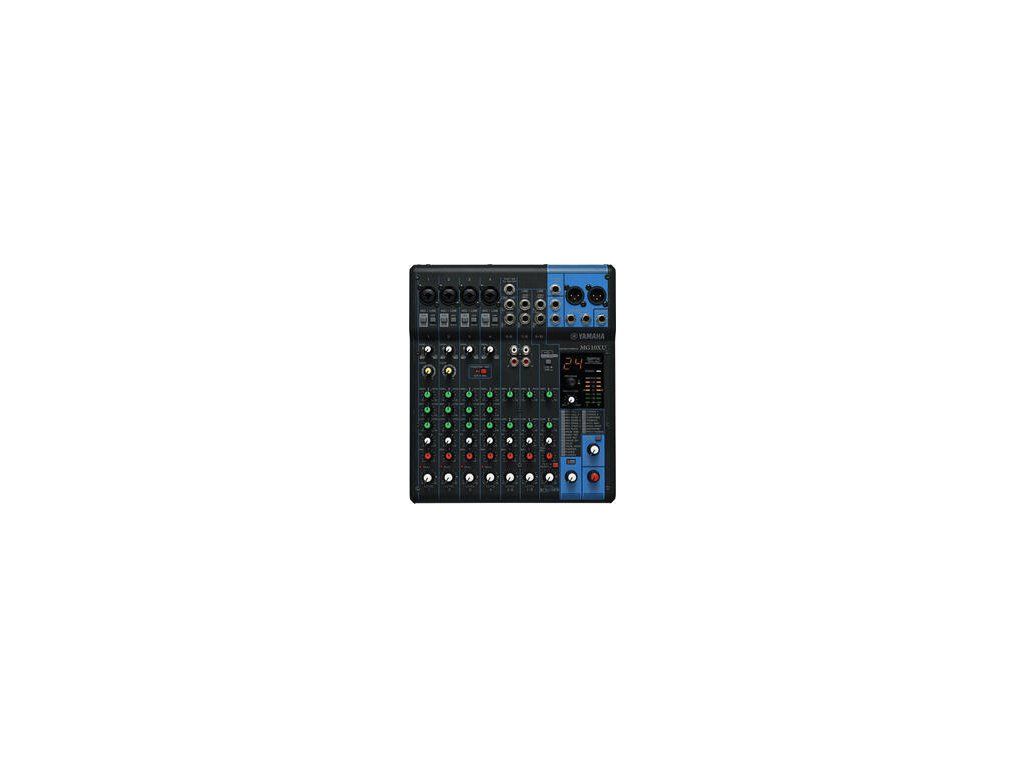

Compact 10-channel mixing console from MG series with built-in USB audio interface and effects for performances, lectures or recordings. It features four mic/line combo inputs equipped with D-PRE mic preamps with an inverted Darlington circuit and switchable 48 V Phantom power, 3-band EQ, pan control, a high pass filter, and 26 dB attenuation switches; six 1/4" line inputs with stereo level controls; and USB port that is also capable of providing two channels in and two channels out to PC at up to 24-bit/192 kHz. Console is also equipped with stereo XLR and TRS outputs for connecting PA system or speakers; 1/4" headphone output; and additional TRS 1/4" stereo monitor outputs for sending signal to powered speakers or digital recorders. Each of the channels feature a dedicated FX bus send level with 24-effect presets (including reverbs, delays, flanger, chorus, tremolo, auto-wah, phaser, or distortion). Console works with the iPad (2 or later) through the Apple iPad Camera Connection Kit (not included), and includes Cubase AI DAW software download version (Cubasis LE for iPad is available at App Store). Dimensions: 244 x 71 x 294 mm. Weight: 2.1 kg.
