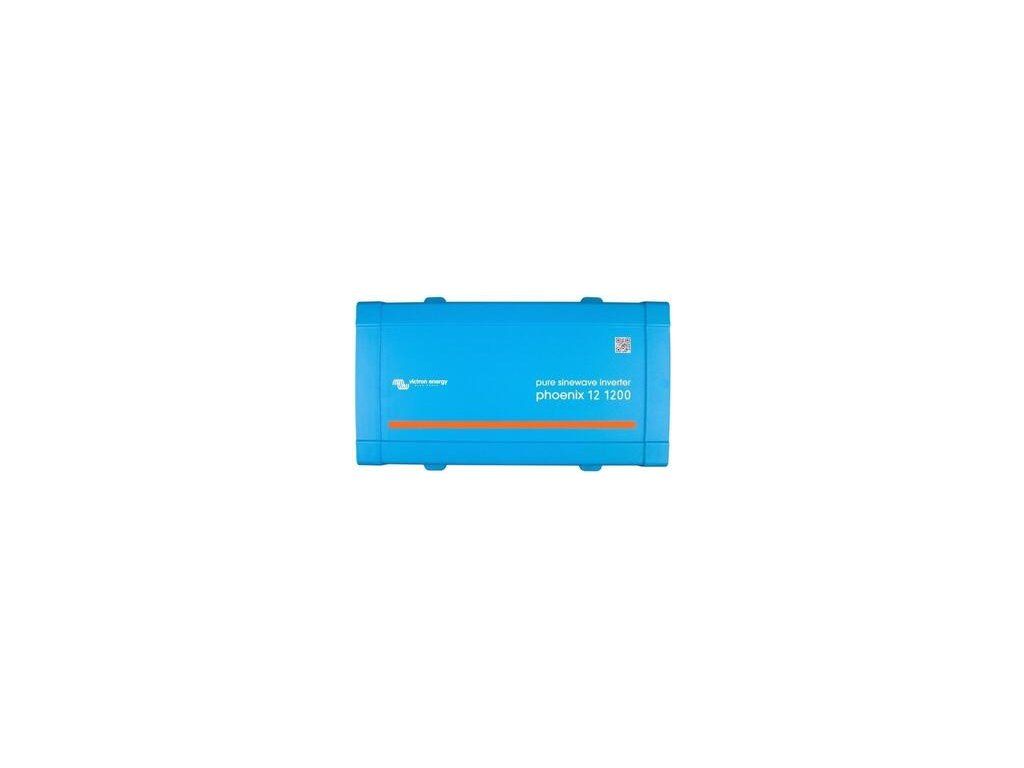

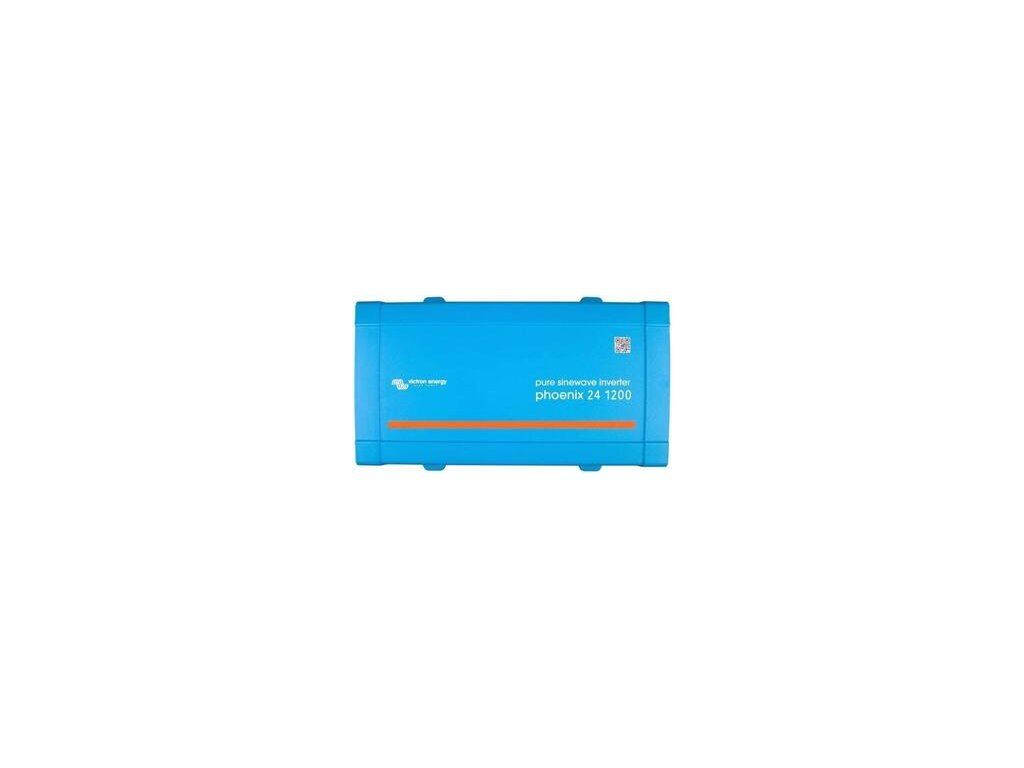

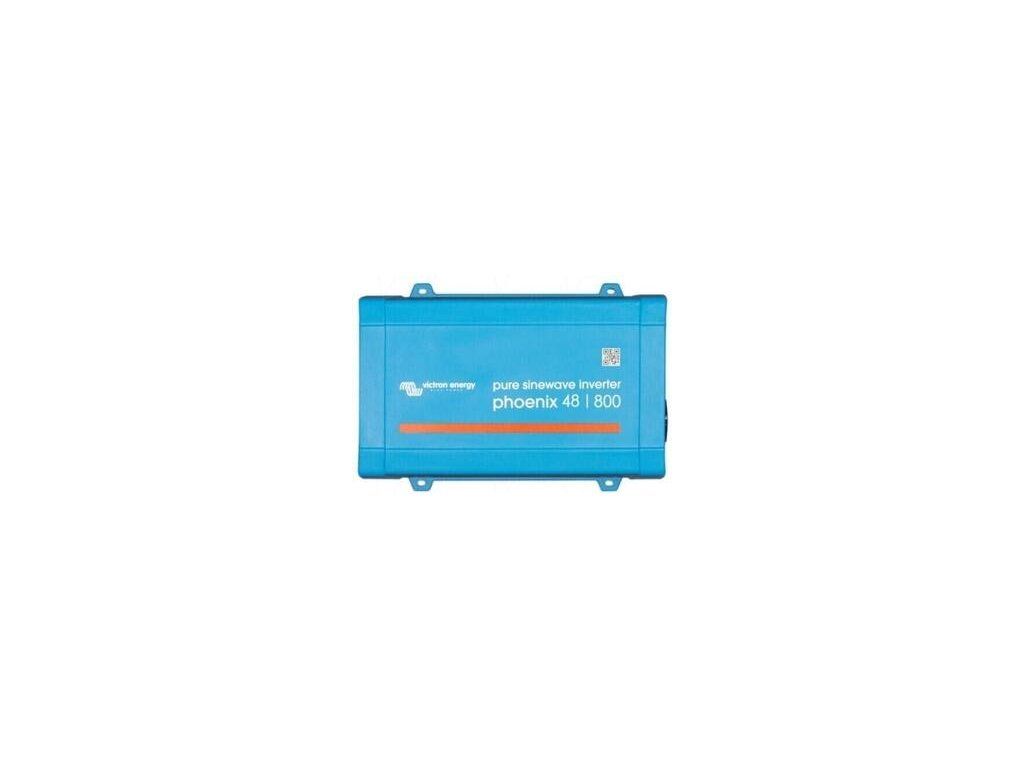

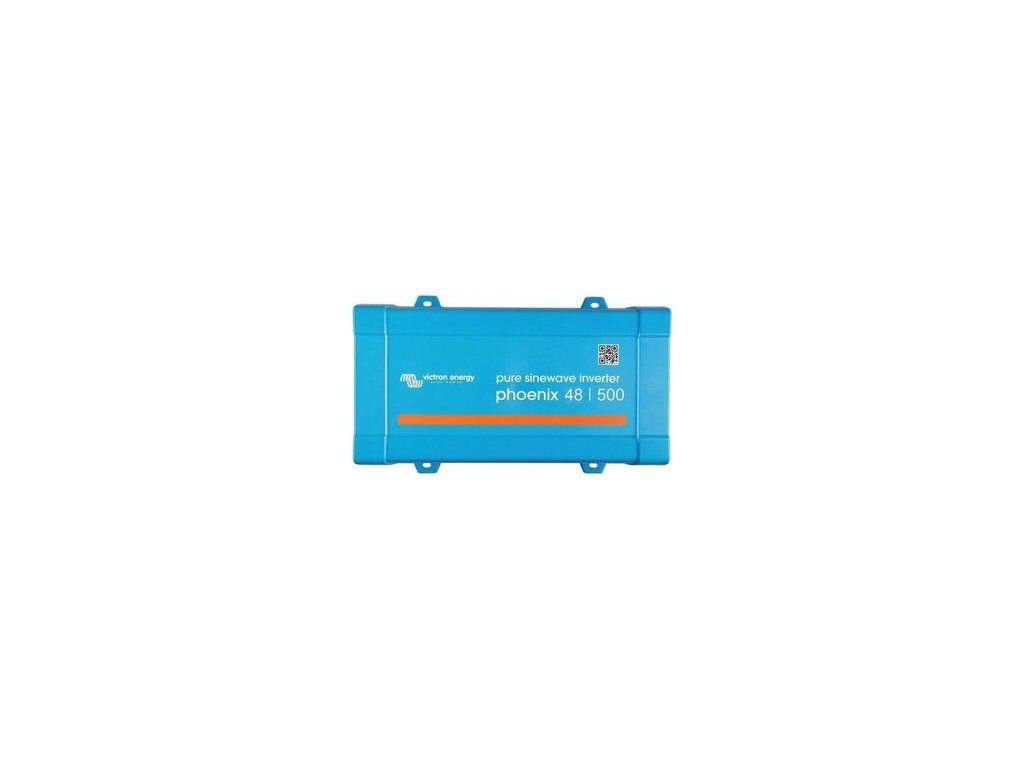

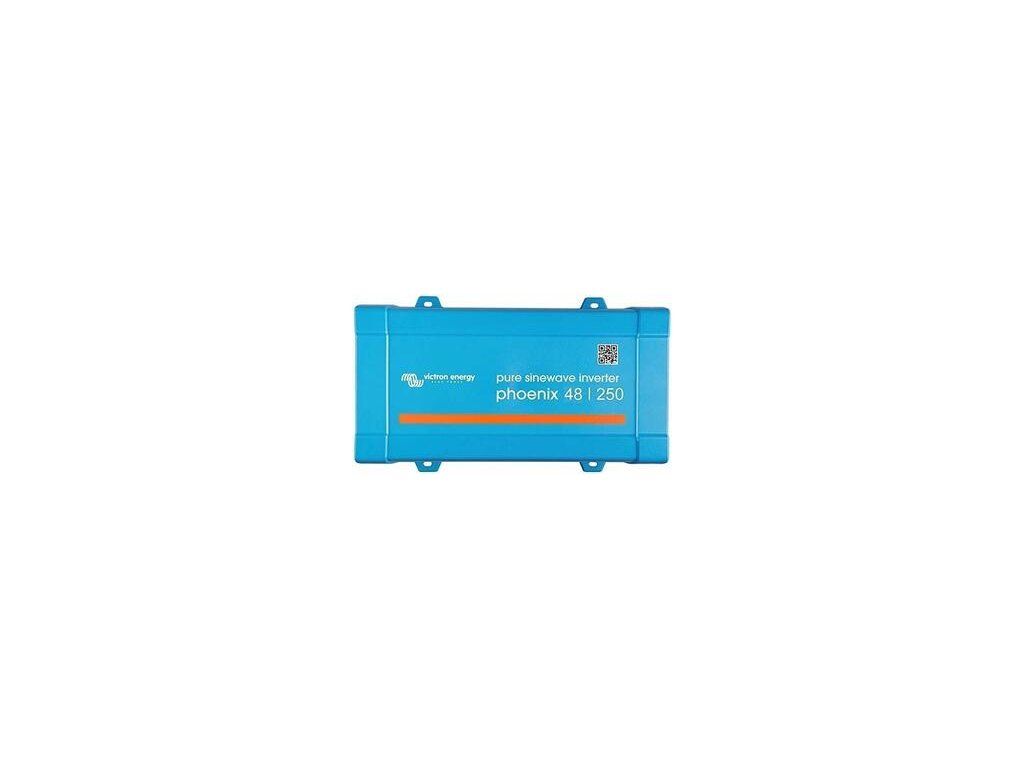

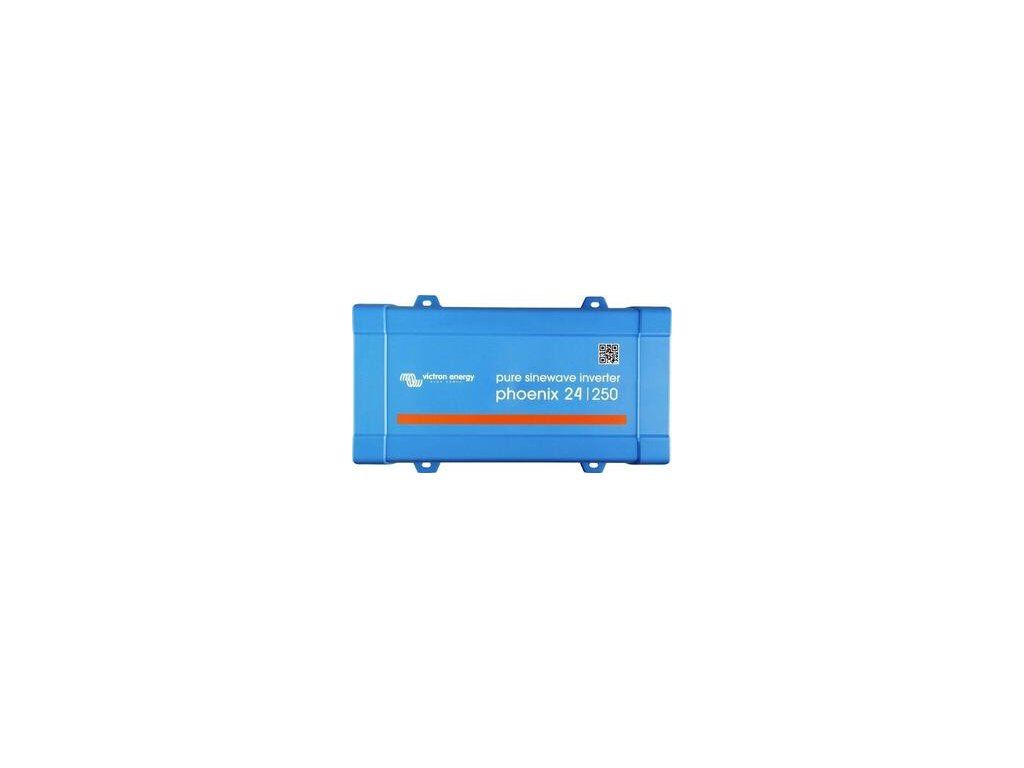

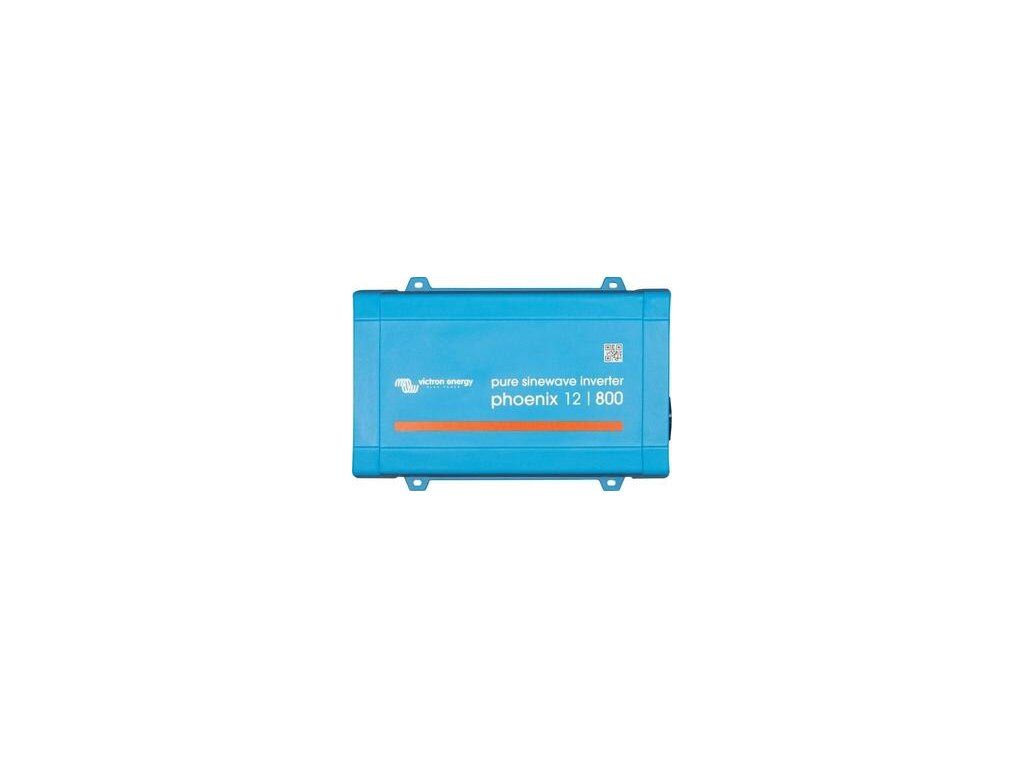

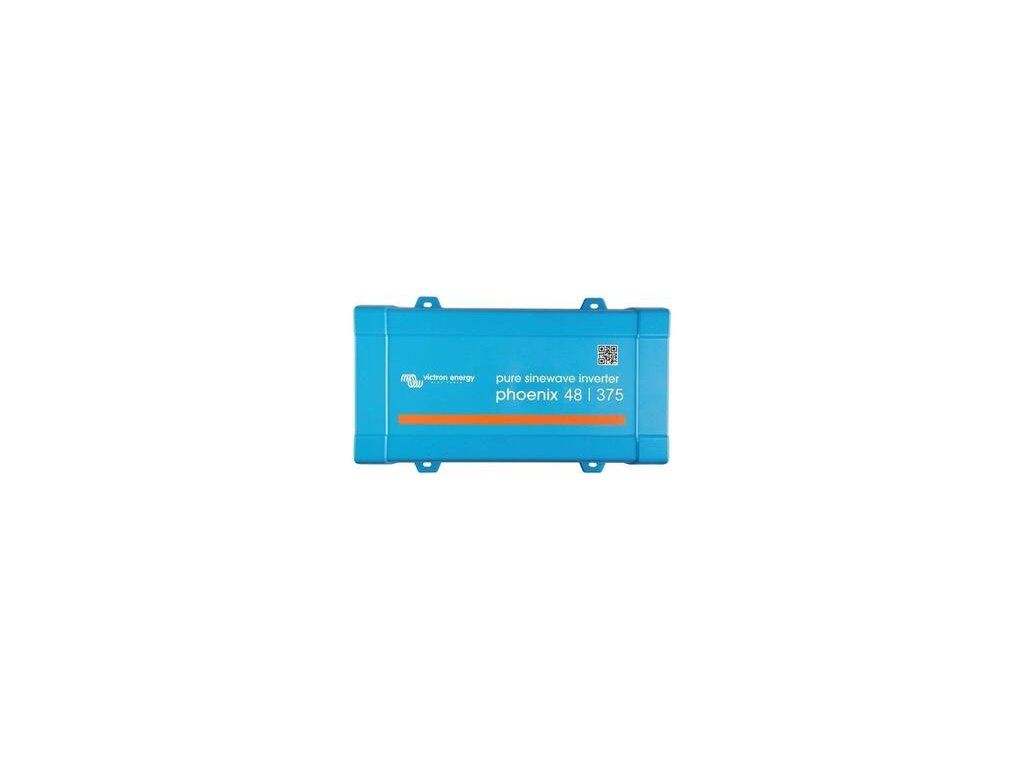

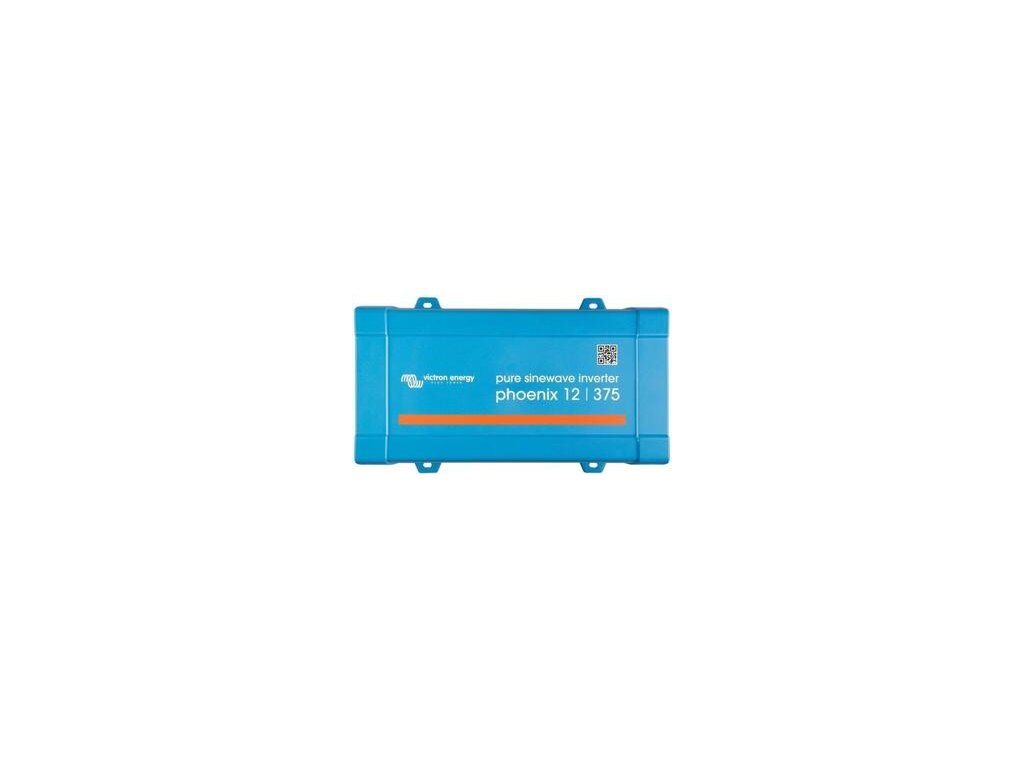

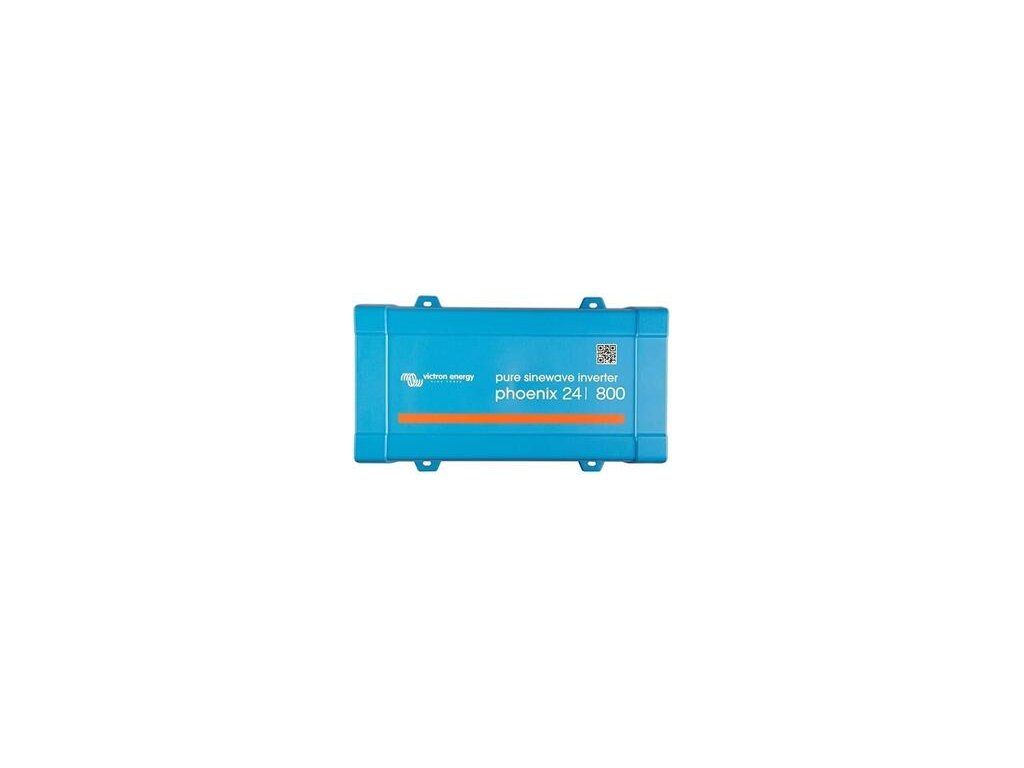

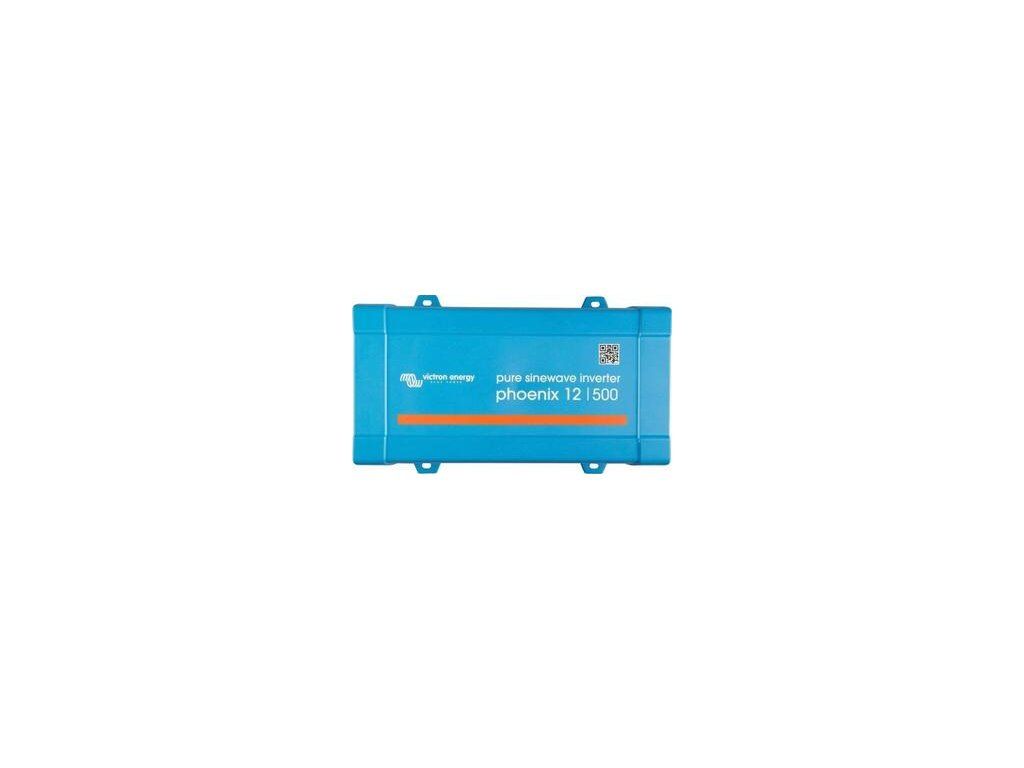

Victron Energy Phoenix W

Product detailed description

VE.Direct communication port. The VE.Direct port can be connected to:• A computer (VE.Direct to USB interface cable needed)• Apple and Android smartphones, tablets, MacBook’s and other devices(VE.Direct Bluetooth Smart dongle needed)Fully configurable:• Low battery voltage alarm trip and reset levels• Low battery voltage cut-off and restart levels• Dynamic cut-off: load dependent cut-off level• Output voltage 210 - 245 V• Frequency 50 Hz or 60 Hz• ECO mode on/off and ECO mode sense level Monitoring:• In- and output voltage, % load and alarms Proven reliabilityThe full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature. High start-up powerNeeded to start loads such as power converters for LED lamps, halogen lamps or electric tools. ECO modeWhen in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on. Remote on/offA remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector. To transfer the load to another AC source: the automatic transfer switchFor low power inverters we recommend Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Battery AlarmAn excessively high or low battery voltage is indicated by an audible and visual alarm, and a relay for remote signalling. BMV Battery MonitorThe BMV Battery Monitor features an advanced microprocessor control system combined with high resolution measuring systems for battery voltage and charge/discharge current. Besides this, the software includes complex calculation algorithms to exactly determine the state of charge of the battery. The BMV selectively displays battery voltage, current, consumed Ah or time to go. The monitor also stores a host of data regarding performance and use of the battery.
