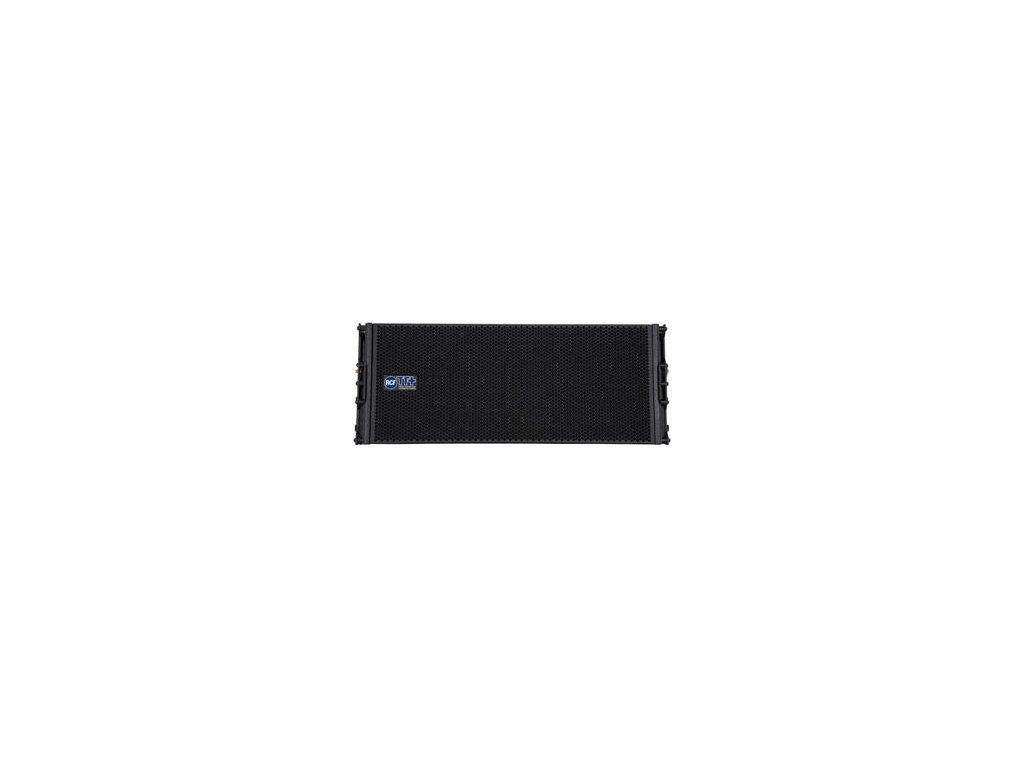

RCF TTL33-A MKII

Product detailed description

The TTL33-A is a compact, wide dispersion, 3 way active line array module that offers the highest performance from a small size line array. The incredible high output and dynamics, the extreme accuracy and high frequency extension plus the compact size makes the TTL33-A the ideal tool for outdoor sound reinforcement, live performances and events as well as fixed installations in theatres, concert halls or auditoriums.Features750 W switching amplifierswide, constant directivity, coverage angle6 high power neodymium transducersHigh quality analog input board96 kHz, 32 bit DSP processingSoft limiter and RMS protectionMaximum output per size available on the marketRDNet on boardAcoustical SpecificationsFrequency Response -3 dB: 60 Hz ÷ 20000 HzMax SPL: 135 dBHorizontal coverage angle: 100°Vertical coverage angle: 15°Compression Driver: 3 X 1.0" neo, 37mm voice coilMidrange: 8" neo, 64mm voice coilWoofer: 2 x 8" neo, 64 mm voice coil Input/Output SectionInput signal: Bal/unbalInput connectors: XLR, RDNet EtherconOutput connectors: XLR, RDNet EtherconInput sensitivity: -2 dBu / + 4 dBu Processor SectionCrossover frequencies: 400 Hz / 1800 HzProtections: Thermal, HFLimiter: RMS, fast limiterControls: HF correction, cluster size, HPF Amplifier SpecificationsTotal power: 750 W RMSHigh frequencies: D/250 W RMSMid frequencies: D/500 W RMSLow frequencies: D/500 W RMSCooling: Convection/forcedConnections: Powercon in/out CabinetCabinet Material: Baltic birchHardware: Array side fittingsHandles: 2 on sideColour: Black Physical SpecificationsHeight: 300 / 11.8 mm/inchWidth: 760 / 30.0 mm/inchDepth: 450 / 18.2 mm/inchNet Weight: 32.5 / 71.5 kg/lbs.
