Monacor MPX-52PA

Product detailed description

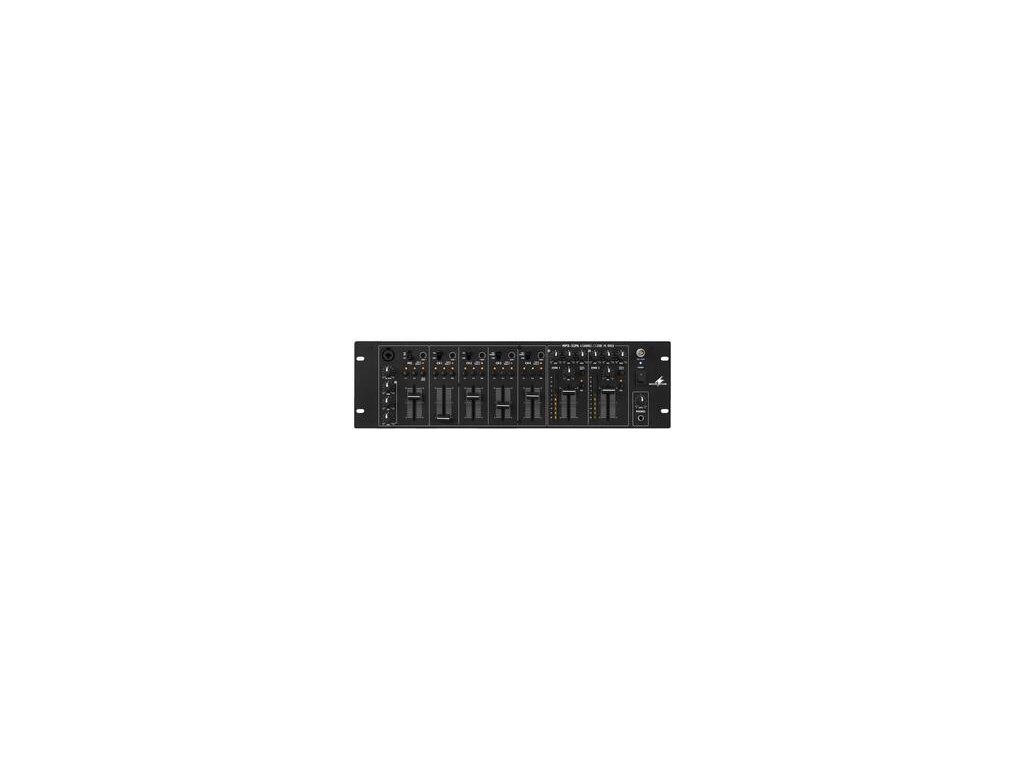

Rack-mountable two-zone mixer for multi-room PA applications that provides two independent zones with routing facility of all input channels as desired. It provides a total of 13 inputs and 6 channels: 1 microphone way as announcing channel, balanced, with 3-way equalizer and adjustable automatic talkover; plus 4 stereo input channels with stereo line inputs and balanced microphone ways. Channel 1 has an additional balanced line input, channels 3 and 4 have switchable line/phono inputs. The mixer offers a signal/peak indication for each channel and recessed gain control for each input channel. Two balanced zone outputs for each stereo RCA and XLR L/R, with 3-way EQ, are provided, as well as one record output for each zone (independent of talkover and announcements). Adjustable headphone output with pre-fader listening (PFL) to the stereo input channels and the zone outputs are also provided. Other features of zone outputs include a LED level indication of the stereo master, balance controls, pre-fader listening (PFL), mono/stereo selection. Connection of gooseneck light is also available (Monacor models GNL-200, GNL-204 or GNL-205). Dimensions: 482 x 138 x 190 mm, 3 RS. Weight: 4.3 kg.
