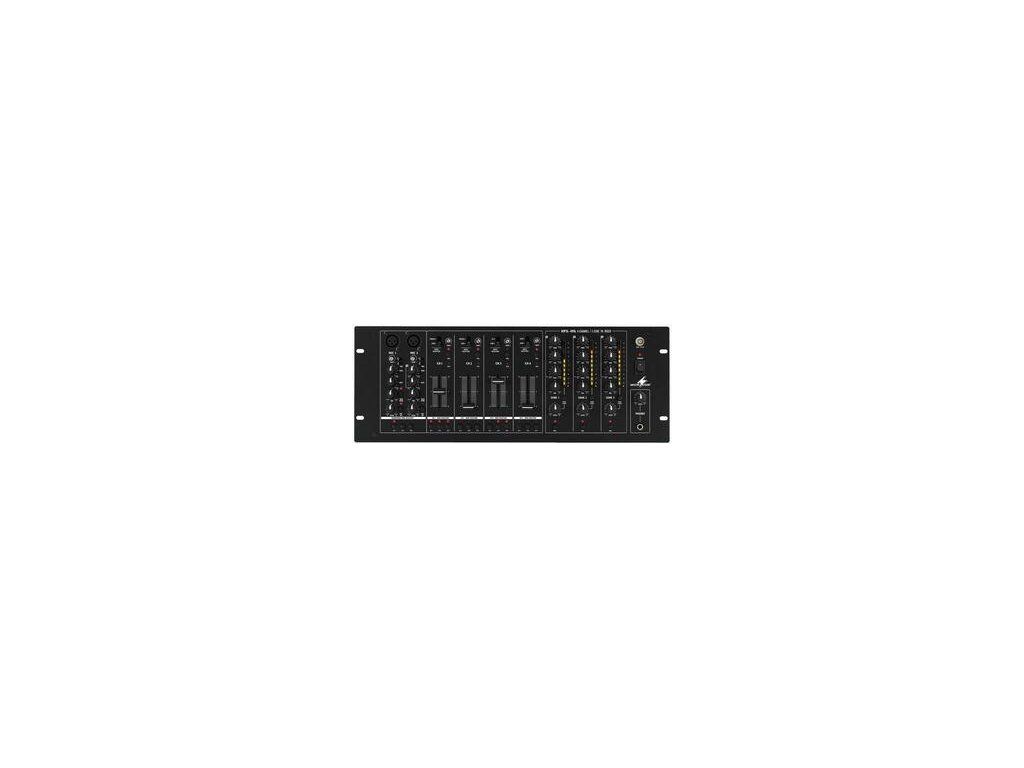

Monacor MPX-4PA

Product detailed description

Rack-mountable three-zone mixer for multi-room PA applications that provides three zones with routing facility of all input channels as desired. It provides a total of 12 inputs and 6 channels – 4 stereo ways and 2 microphone ways. Both microphone ways can be routed together and feature a two-way control, talkover and PAD switch. Stereo channels provide two switchable phono/line and two line/line inputs. Two balanced XLR and RCA zone outputs, each with 3-way EQ, LED level indication of the stereo master, balance control, pre-fader listening (PFL), mono/stereo selector switch, are provided. Adjustable headphone output with pre-fader listening (PFL) to the stereo input channels and the zone outputs, plus connection for gooseneck light (Monacor models GNL-204 or GNL-205) are also provided. Dimensions: 482 x 177 x 105 mm, 4 RS. Weight: 3.75 kg.
