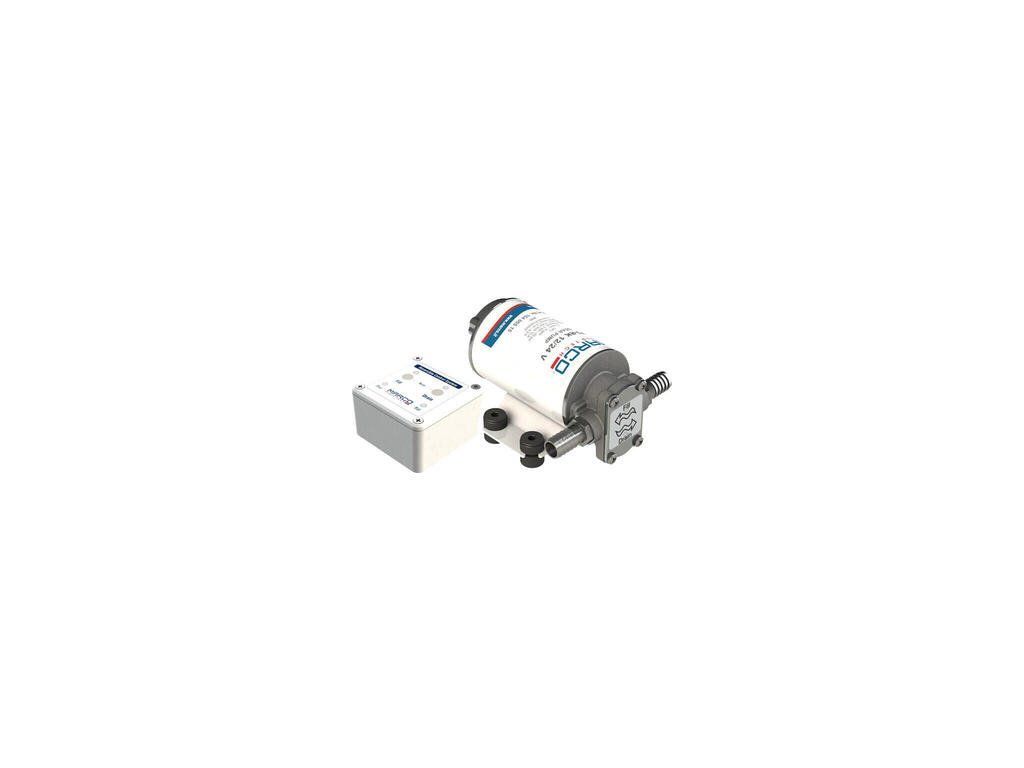

Marco UP3-RK Reversible pump kit with panel 15 l/min
Code: PR-14756Product detailed description
Diesel transfer Kit with electronic control. During priming the speed of the pump increases and the system automatically shuts off in case of empty tank and short circuit. Being equipped with a reverse-flow function system, this kit is particularly indicated for tank balancing operations on board. Technical parameters: Voltage – 12/24 V, Consumption – 6/3 A, Fuse – 10 A, Self-priming – 1,5 m, Pressure – 2 bar, Flow rate - 15 l/min, Hose – 13 mm, Ports (BSP) – 3/8“, Motor power – 120 W, Weight – 2,1 kg.Additional parameters
| Category: | Fuel Pumps |
|---|---|
| Power: | 120 W |
| Voltage: | 12 / 24 V |
| Weight: | 2,1 kg |
| Pressure: | 2 bar |
| UK/EU Power supply included: | No |
| Volumetric Flow: | 15 l/min |
| Power Consumption: | 6/3 A |
| Fuse: | 10 A |
| Self-Priming: | 1,5 m |
| Ports (BSP): | 3/8" |
| Hose: | 13 mm |
| IP Protection: | 65 |
| Power amount: | 120.0 |
| Power measure: | w |
| Weight amount: | 2.0 |
| Weight measure: | kg |
| Pressure amount: | 2.0 |
| Pressure measure: | bar |
| Fuse amount: | 10.0 |
| Fuse measure: | a |
| Self-Priming amount: | 1.0 |
| Self-Priming measure: | m |
| Hose amount: | 13.0 |
| Hose measure: | mm |
