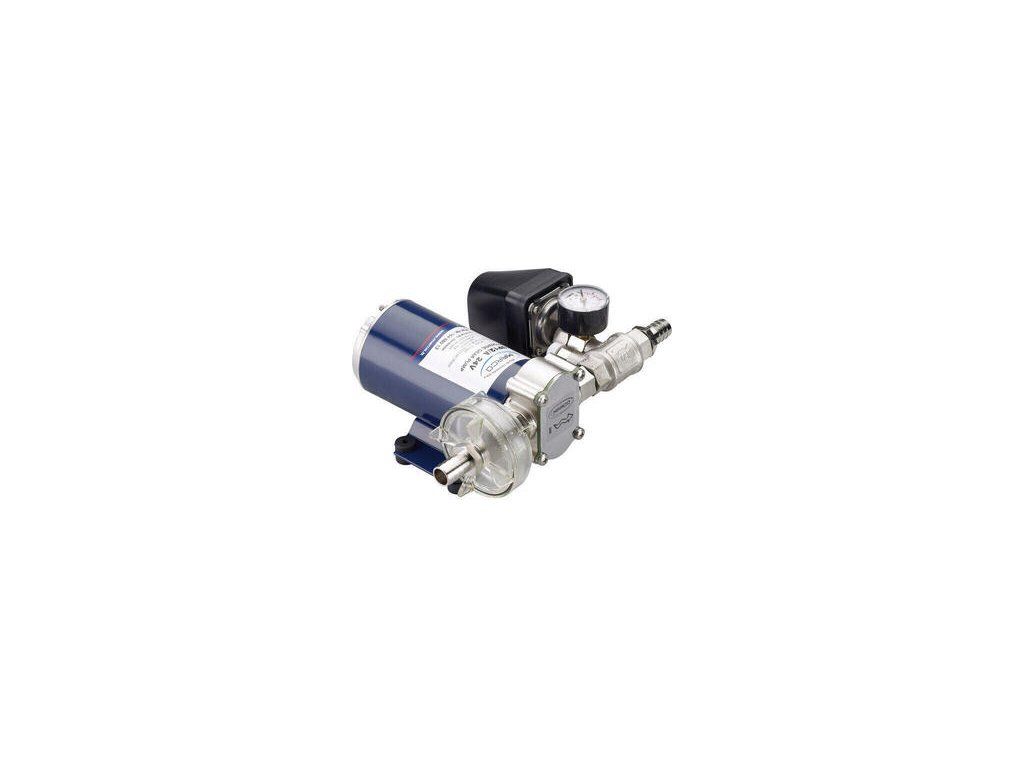

Marco UP12/A Water pressure system PTFE gears 36 l/min
Code: PR-106352Product detailed description
Self-priming electric pumps with PTFE helical gears, equipped with in-line filter, pressure switch, check valve to be used as automatic pumps for water pressure systems on boats, mobile homes etc. Nickelplated brass body, stainless steel shaft. Technical parameters: Voltage – 24 V, Consumption – 10 A, Fuse – 20 A, Self-priming – 3 m, Pressure – 2,5 bar, Flow rate - 36 l/min, Hose – 16 mm, Ports (BSP) – 1/2“, Motor power – 360 W, Weight – 5 kg.Additional parameters
| Category: | Pumps / Water Systems |
|---|---|
| Power: | 360 W |
| Voltage: | 24 V |
| Weight: | 5 kg |
| Pressure: | 2,5 bar |
| UK/EU Power supply included: | No |
| Volumetric Flow: | 36 l/min |
| Power Consumption: | 10 A |
| Fuse: | 20 A |
| Self-Priming: | 3 m |
| Ports (BSP): | 1/2" |
| Hose: | 16 mm |
| IP Protection: | 44 |
| Power amount: | 360.0 |
| Power measure: | w |
| Voltage amount: | 24.0 |
| Voltage measure: | v |
| Weight amount: | 5.0 |
| Weight measure: | kg |
| Pressure amount: | 2.0 |
| Pressure measure: | bar |
| Power Consumption amount: | 10.0 |
| Power Consumption measure: | a |
| Fuse amount: | 20.0 |
| Fuse measure: | a |
| Self-Priming amount: | 3.0 |
| Self-Priming measure: | m |
| Hose amount: | 16.0 |
| Hose measure: | mm |
