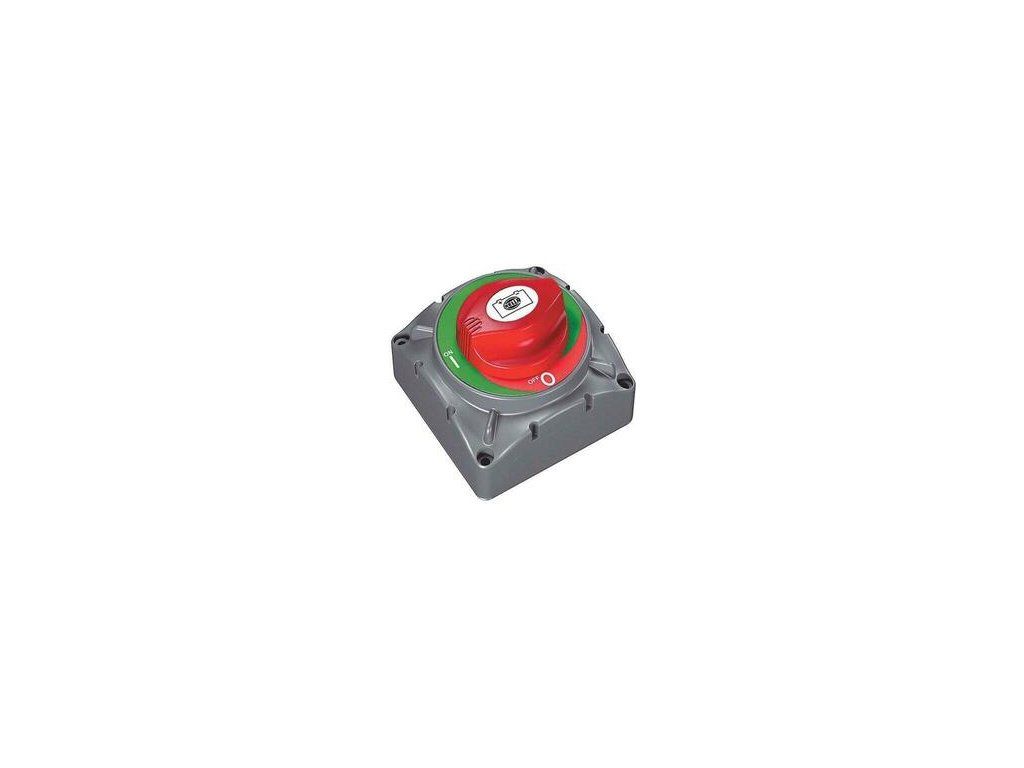

Hella Marine Amp Battery Master Switch

Code: PR-104139 PR-104140 Choose variant
Not rated
Hella Marine Amp Battery Master Switch
€34,90 €84,90 from €34,90
Out of Stock Out of Stock Choose variant
Current
Current (A)
Chosen variant is not available. Reset selected parameters.

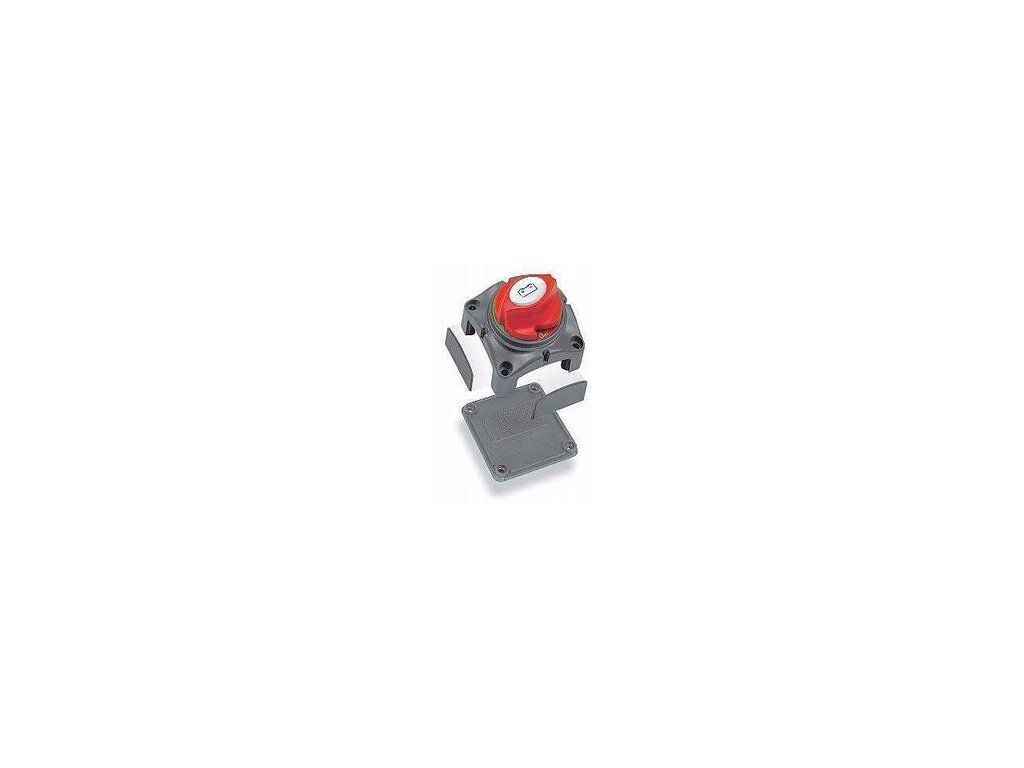

Contour Lock system with removable plates for connection from all sides. This allows the switch to be a stand alone unit or locked together with other switches. The control knob can not be removed whilst in an ON or OFF position, however it can be removed by switching to an anti-clockwise 45° position. Suitable for surface or recess mounting by cutting a 52mm diameter hole. Specification: Material Description - Impact resistant plastic, Termination Stud Size - 2 x 10 mm, IP56, Max. Load Continuous - Continuous 275 A, Max. Load Intermittent - 455 Amps (5 minutes), Max. Load Cranking - 1250 A (10 seconds), Max. Voltage - 48V DC.

Detailed information

Product detailed description

Contour Lock system with removable plates for connection from all sides. This allows the switch to be a stand alone unit or locked together with other switches. The control knob can not be removed whilst in an ON or OFF position, however it can be removed by switching to an anti-clockwise 45° position. Suitable for surface or recess mounting by cutting a 52mm diameter hole. Specification: Material Description - Impact resistant plastic, Termination Stud Size - 2 x 10 mm, IP56, Max. Load Continuous - Continuous 275 A, Max. Load Intermittent - 455 Amps (5 minutes), Max. Load Cranking - 1250 A (10 seconds), Max. Voltage - 48V DC.
