Electro Voice ELX

Code: PR-75651 PR-65696 PR-15556 Choose variant
Not rated
Electro Voice ELX
€548 €418 €622 from €418
Out of Stock Out of Stock Out of Stock Choose variant
Woofer
Power RMS
Tweeter
Chosen variant is not available. Reset selected parameters.

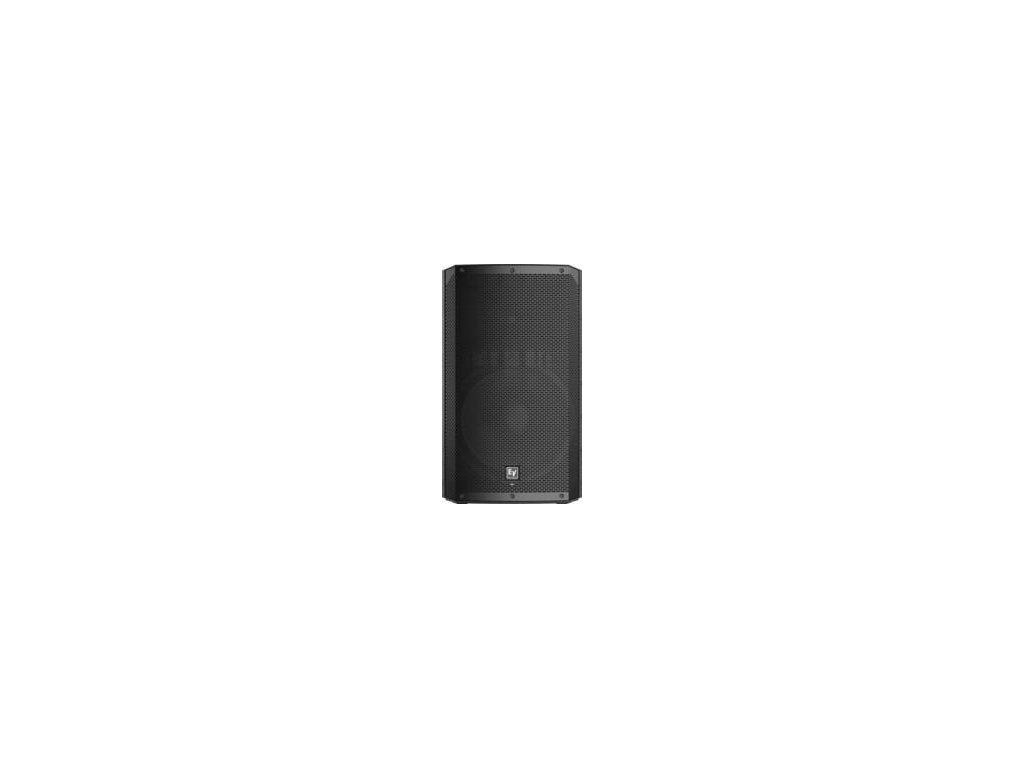

Two-way powered loudspeaker from ELX200 series that features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 132 dB SPL utilizing transducers designed and engineered by Electro Voice - a 15-inch EVS-15M woofer coupled with a DH-1C 1-inch titanium compression driver. It allows for easy setup via four presets (Music, Live, Speech, Club), three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. It is ideal for portable and installed applications, with lightweight and durable polypropylene enclosure, three M10 threaded mounting points and the proven ZLX handle design for easy lifting. The QuickSmart Mobile wireless control and monitoring application, using Bluetooth Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. The loudspeaker provides one stereo RCA input, two XLR/TRS combo jacks and one XLR connector. Crossover frequency: 1600 Hz. Frequency range (-10 dB): 48 Hz-19 kHz. Frequency response (-3 dB): 55 Hz-16 kHz. Dimensions: 384 x 710 x 423 mm. Weight: 18.9 kg.

Detailed information

Product detailed description

Two-way powered loudspeaker from ELX200 series that features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 132 dB SPL utilizing transducers designed and engineered by Electro Voice - a 15-inch EVS-15M woofer coupled with a DH-1C 1-inch titanium compression driver. It allows for easy setup via four presets (Music, Live, Speech, Club), three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. It is ideal for portable and installed applications, with lightweight and durable polypropylene enclosure, three M10 threaded mounting points and the proven ZLX handle design for easy lifting. The QuickSmart Mobile wireless control and monitoring application, using Bluetooth Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. The loudspeaker provides one stereo RCA input, two XLR/TRS combo jacks and one XLR connector. Crossover frequency: 1600 Hz. Frequency range (-10 dB): 48 Hz-19 kHz. Frequency response (-3 dB): 55 Hz-16 kHz. Dimensions: 384 x 710 x 423 mm. Weight: 18.9 kg.
