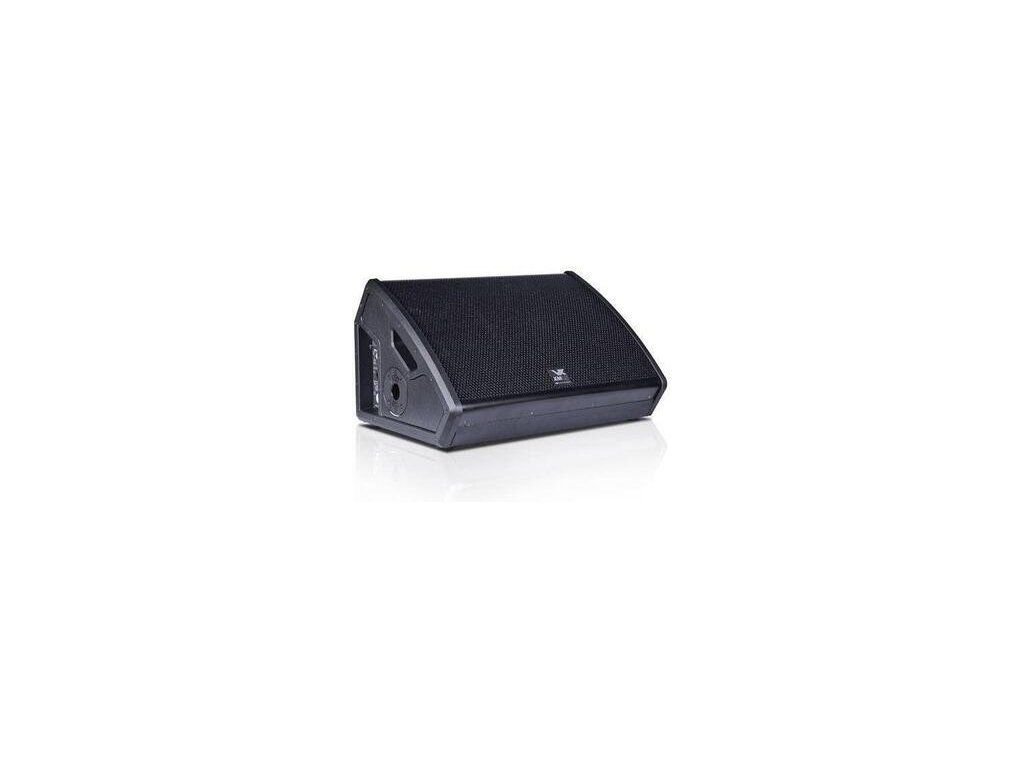

dB Technologies LVX Active Stage Monitor

Product detailed description

Two-way active stage monitor from LVX series that is equipped with heavy duty components and features a particular coaxial horn design, delivering a powerful yet clear sound quality. The design enhances the benefits of coaxial wedges concept and does not only shape high frequencies’ directivity, but also acts as a phase plug for the woofer, boosting and lighting up the vocal band. As a result, not only the horn contributes to deliver a bright audio performance with a uniform throw pattern, but also contributes to reduce the overall dimensions of the system and protect the internal components, reinforcing the cabinet structure. The monitor is equipped with 12” woofer with 2.5” voice coil, 1” tweeter with 1.4” voice coil and the Digipro G3 Class D amplifier with 1200W peak power. The advanced DSP with 24/48-bit AD/DA conversion and FIR filters processing offers eight variable presets in order to easily adapt to different stage requirements and to the varying demands of vocalists, instrumentalists as well as audio playback applications. The cabinet is constructed in sturdy plywood and comes with 2 integrated side handles allowing easy transport and stage set up operations. A pole mount cup on one side allows for putting the system on a pole for vertical use (e.g. as drummer monitoring or for audio playback applications). Frequency response [- 6 dB]: 69 Hz-17.8 kHz. Max SPL: 127 dB. Dimensions: 515 x 460 x 370 mm. Weight: 20.1 kg.
