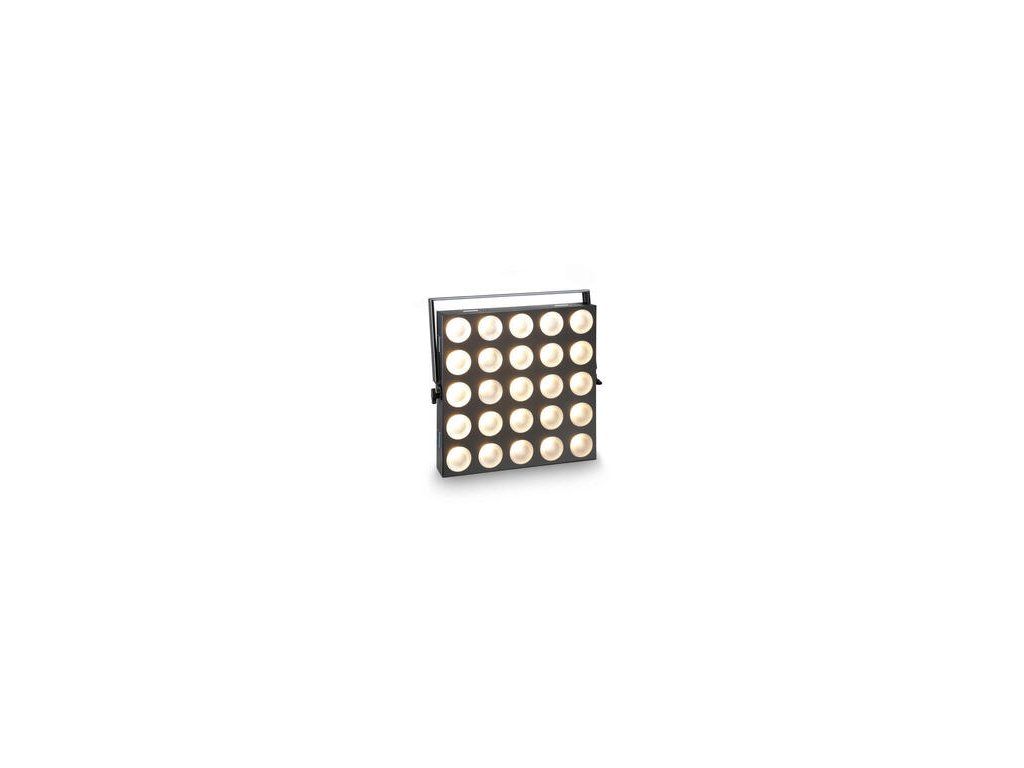

Cameo MATRIX PANEL 3 WW

Product detailed description

5 x 5 LED Matrix Panel with single pixel control. With a 5 x 5 array of warm white 3 watt LEDs and flicker-free performance the Cameo Matrix Panel creates exciting blinder, chase and strobe effects. Featuring powerful single pixel control it is the perfect choice for mapping alphabetic characters, numerals and complete messages. Recessed latches on all sides enable connecting multiple panels for large, impressive backdrops. The Matrix Panel includes four modes of DMX control, sound activation and 4 selectable dimming curves. It sports master, slave and standalone capability plus highly efficient convection cooling for noiseless operation. The ultra flat all-metal enclosure provides 3-pin DMX input and output, blue and white power connectors, a bright 4-button display and safety eye. The Matrix Panel comes with a mounting bracket. Colour temperature: 3300 K. Dispersion: 40°. Refresh rate: 3400 Hz. DMX input: XLR 3-pin male. DMX output: XLR 3-pin female. DMX mode: 2-channel, 5-channel, 28-channel, 10-channel. DMX functions: Stroboscope, auto programs, Dimmer Fine, master dimmer, sound programs. Standalone mode: Music control, master / slave mode. Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz. Power consumption: 100 W. Fuse: F5A / 250V. Power connector: Blue and white power I/O. Operating temperature: 10 - 40°C. Illuminance: 6100lx @ 1m. Housing material: metal. Cabinet colour: black. Width: 580 mm. Height: 580 mm. Depth: 67 mm. Weight: 8 kg.
