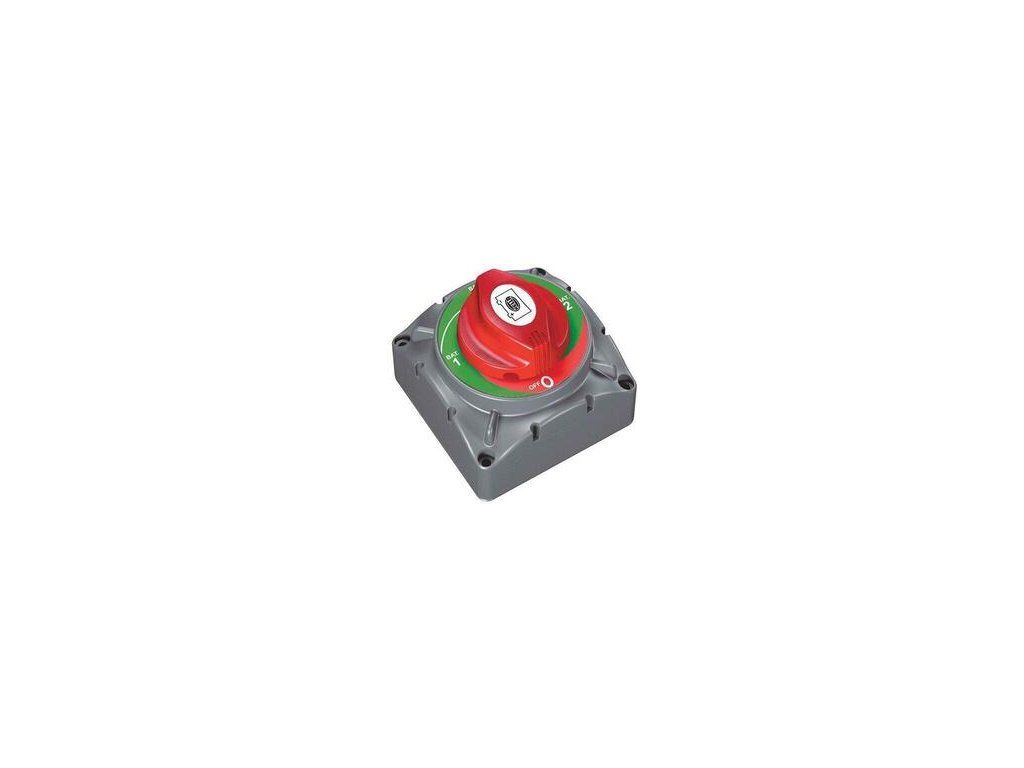

BEP 350 Amp Battery Master Switch
Code: PR-33453Product detailed description
Contour Lock system with removable plates for connection from all sides. This allows the switch to be a stand alone unit or locked together with battery distribution modules. Necessary for on board systems fed from 2 or more batteries and whose supply comes from more than 1 generator. Rotary switch in 4 switch positions of battery 1-2-Both-OFF. Switch can also be pad locked. Suitable for surface or recess mounting by cutting an 85mm diameter hole. Specification: Material Description - Impact resistant plastic, Termination Stud Size - 3 x 10mm, IP56, Max. Load Continuous - 350 Amps - B1 or B2, 500 Amps - B1 and B2, Max. Load Intermittent - 500 Amps (5 minutes), Max. Load Cranking - 1500 Amps (10 seconds), Max. Voltage - 48V DC.Additional parameters
| Category: | Switches |
|---|---|
| Voltage: | 48 V |
| Current: | 350 A |
| Current (A): | 350.0 |
| Voltage amount: | 48.0 |
| Voltage measure: | v |
| Current amount: | 350.0 |
| Current measure: | a |
