Behringer X-MADI

Code: PR-19304
Not rated
Behringer X-MADI
€309
Out of Stock
The item has been sold out…

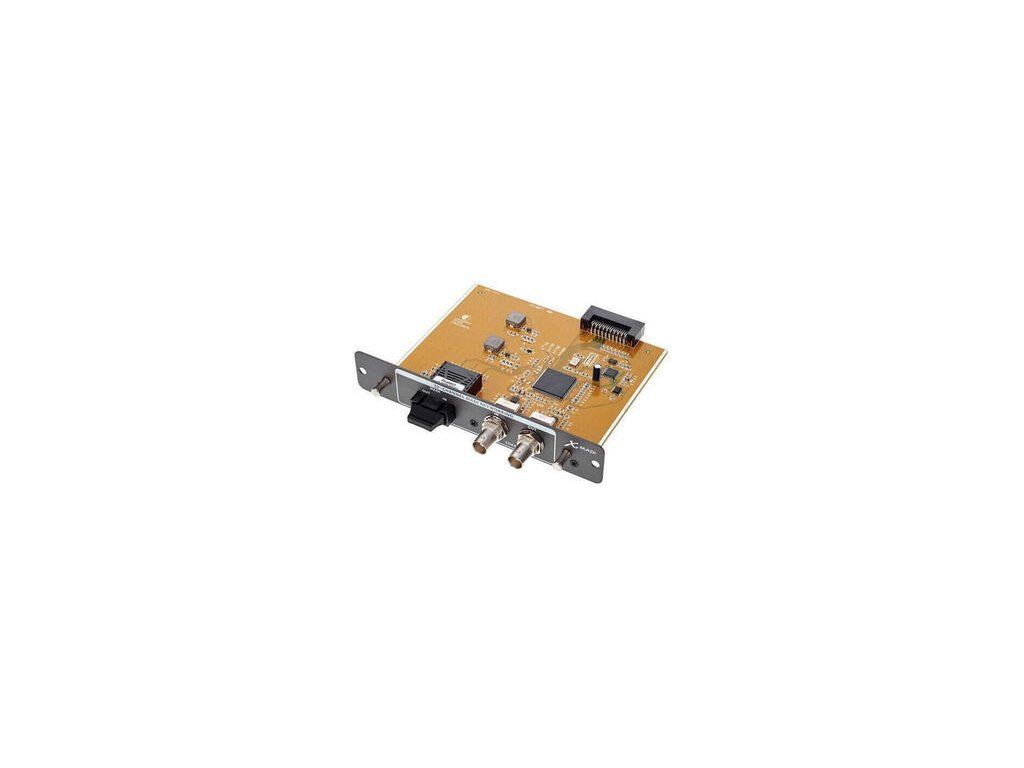

High-performance 32-channel MADI expansion card for X32. It features 32-channel, bi-directional audio interface via MADI (AES10), optical duplex SC-plugs (IEC874-19) to connect with fibre optic MADI devices and multimode fibre optic cable length of up to 2 km supported. Dual BNC terminals for transmission via standard 75-Ohm coaxial cable of up to 100 m length. BNC connectivity can be used as a redundancy network with fibre optic installations. Console allows selecting a block of 32 out of up to 64 MADI channels. Both MADI formats 56-channel (AES10-1991) and 64-channel (AES10-2003) supported.

Detailed information

Product detailed description

High-performance 32-channel MADI expansion card for X32. It features 32-channel, bi-directional audio interface via MADI (AES10), optical duplex SC-plugs (IEC874-19) to connect with fibre optic MADI devices and multimode fibre optic cable length of up to 2 km supported. Dual BNC terminals for transmission via standard 75-Ohm coaxial cable of up to 100 m length. BNC connectivity can be used as a redundancy network with fibre optic installations. Console allows selecting a block of 32 out of up to 64 MADI channels. Both MADI formats 56-channel (AES10-1991) and 64-channel (AES10-2003) supported.

Additional parameters

Category: PCI Audio Interfaces
Number of Outputs: 1
Number of Channels: 32
Number of Input Ports: 1
