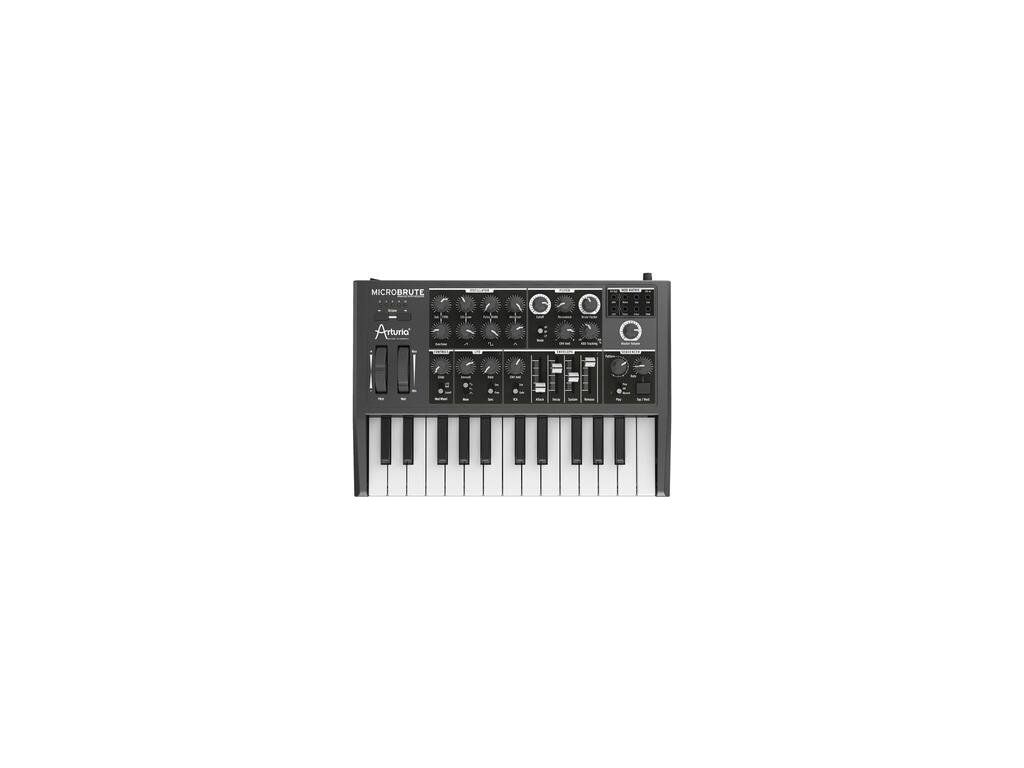

Arturia Microbrute
Code: PR-149744Product detailed description
Compact monophonic 100% analogue synthesizer with 25-mini-key keyboard that utilizes the same oscillator design as Arturia’s Mini Brute synthesizer and 3-waveform LFO (sine, sawtooth, square) with destination attenuator. It features a Voltage Controlled oscillator with new Overtone sub-oscillator and oscillator mixer (Sub, Sawtooth, Square, Triangle), a Steiner-Parker 2-pole multi-mode filter with High Pass, Low Pass and Band Pass modes, and an unique Brute Factor that deliver saturation and rich harmonics. It also utilizes single enhancers: Pulse Width modulation, Ultrasaw that generates fat sawtooth waveforms and Metalizer that brings in extreme harmonics; a fast ADSR envelope generator and a step sequencer with 8 memories, up to 64 steps per memory and tap tempo/rest insert. Mod wheel and Pitch wheel, as well as an Octave selector from-2 to +2 octaves are also provided. Synthesizer offers an external analogue audio input (level pot in rear), CV inputs (Pitch, Filter, Sub-mod, Pulse, Saw animator, Metalizer, Gate in), CV outputs (Pitch, Gate, Env, LFO), a MIDI in with 5-pin DIN connector, a USB MIDI in/out, a 1/4” audio output and 1/8” headphone output. Device is powered by 12V DC 1A power supply.Additional parameters
| Category: | Synthesizers |
|---|---|
| Battery Operation: | No |
| Package Contents: | Adapter |
| Number of Keys: | 25 |
| Polyphony: | 1 |
| Colour: | Black |
| Weight: | 2 kg |
| Keyboard Type: | Mini-Key |
| Type: | Semi-modular |
| MIDI Interface: | Yes |
| Key Size: | Mini |
| Storage Medium: | No |
| Offer Configuration: | Standard offer |
| Headphone Output: | Yes |
| Outputs: | Headphone Jack 6,3 mm TRS |
| Inputs: | Jack 6,3 mm TS |
| Sequencer: | Yes |
| Number of Presets: | 3 |
| UK/EU Power supply included: | Yes |
| Power Supply: | 240V |
| Aftertouch: | No |
| Pitch Bend: | Yes |
| Modulation: | Yes |
| Bluetooth: | No |
| USB MIDI: | Yes |
| USB to Device: | No |
| USB to Host: | Yes |
| Effect Types: | Analog Distortion (Brute Factor) |
| Height (cm): | 6.0 |
| Width (cm): | 32.0 |
| Depth (cm): | 22.1 |
| Net Weight (kg): | 1.75 |
| Pedal Inputs: | No |
| Sound Engine: | Analog |
| Envelope: | ADSR |
| Filter: | High Pass |
| LFO: | 2 |
| Oscillators: | Yes |
| Arpeggiator: | No |
| Weight amount: | 2.0 |
| Weight measure: | kg |
| Power Supply amount: | 240.0 |
| Power Supply measure: | v |
| Battery Operation count: | 1 |
| Package Contents count: | 1 |
| Number of Keys count: | 1 |
| Polyphony count: | 1 |
| Colour count: | 1 |
| Weight count: | 1 |
| Keyboard Type count: | 1 |
| Type count: | 1 |
| MIDI Interface count: | 1 |
| Key Size count: | 1 |
| Storage Medium count: | 1 |
| Made in count: | 1 |
| Offer Configuration count: | 1 |
| Headphone Output count: | 1 |
| Outputs count: | 1 |
| Inputs count: | 1 |
| Sequencer count: | 1 |
| Number of Presets count: | 1 |
| UK/EU Power supply included count: | 1 |
| Power Supply count: | 1 |
| Aftertouch count: | 1 |
| Pitch Bend count: | 1 |
| Modulation count: | 1 |
| Bluetooth count: | 1 |
| USB MIDI count: | 1 |
| USB to Device count: | 1 |
| USB to Host count: | 1 |
| Effect Types count: | 1 |
| Height (cm) count: | 1 |
| Width (cm) count: | 1 |
| Depth (cm) count: | 1 |
| Net Weight (kg) count: | 1 |
| Pedal Inputs count: | 1 |
| Sound Engine count: | 1 |
| Envelope count: | 1 |
| Filter count: | 1 |
| LFO count: | 1 |
| Oscillators count: | 1 |
| Arpeggiator count: | 1 |
| Weight amount count: | 1 |
| Weight measure count: | 1 |
| Power Supply amount count: | 1 |
| Power Supply measure count: | 1 |
