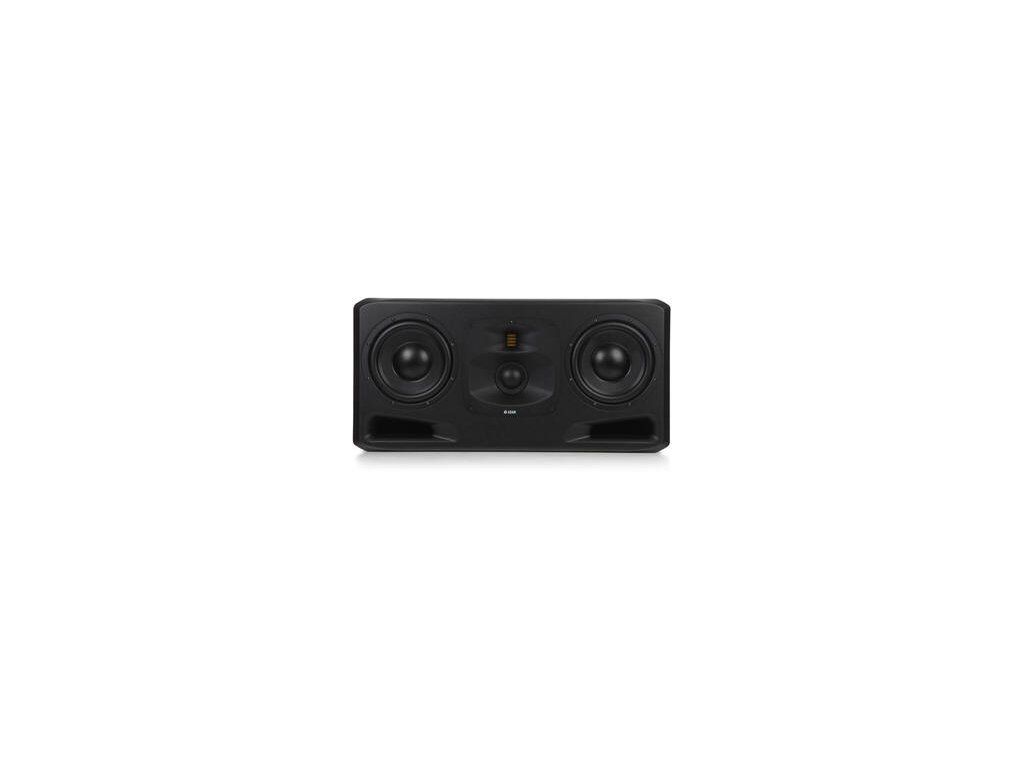

Adam S5H

Code: PR-49836
Not rated
€10 147
Out of Stock
The item has been sold out…
The S5H is a powerful main monitor custom-designed for the demanding rigours of reference listening in the world’s most expansive studios and control rooms.The three-way S5H was conceived, as its name suggests, to be used in a horizontal orientation and features two 10-inch Extended Linear Excursion (ELE) bass drivers, newly designed by ADAM expressly for the S Series. Like the LF ELE units on all the other members of the range, the S5H’s woofers feature ADAM Audio’s proprietary Symmetrical Magnet Assembly (SMA) guaranteeing that low-frequency audio remains tightly controlled and free of distortion at all times. The all-important mid-range frequencies are handled by ADAM Audio’s new hybrid DCH. This innovative 4-inch MF driver was also newly developed by ADAM Audio exclusively for the S Series and combines the sonic advantages of cone and dome drivers in a single, one-piece unit.Warranty: 2 years + 3 years after registration in the MyADAM customer zoneFree plugins: In MyADAM user area you will find a personalized voucher code for the current plugin under the tab FREE PLUGINS, where you can also find detailed instructions on how to redeem it. You can use the plugins with almost any digital audio workstation like Ableton and Pro Tools.

Detailed information

Product detailed description

The S5H is a powerful main monitor custom-designed for the demanding rigours of reference listening in the world’s most expansive studios and control rooms.The three-way S5H was conceived, as its name suggests, to be used in a horizontal orientation and features two 10-inch Extended Linear Excursion (ELE) bass drivers, newly designed by ADAM expressly for the S Series. Like the LF ELE units on all the other members of the range, the S5H’s woofers feature ADAM Audio’s proprietary Symmetrical Magnet Assembly (SMA) guaranteeing that low-frequency audio remains tightly controlled and free of distortion at all times. The all-important mid-range frequencies are handled by ADAM Audio’s new hybrid DCH. This innovative 4-inch MF driver was also newly developed by ADAM Audio exclusively for the S Series and combines the sonic advantages of cone and dome drivers in a single, one-piece unit.Warranty: 2 years + 3 years after registration in the MyADAM customer zoneFree plugins: In MyADAM user area you will find a personalized voucher code for the current plugin under the tab FREE PLUGINS, where you can also find detailed instructions on how to redeem it. You can use the plugins with almost any digital audio workstation like Ableton and Pro Tools.

Additional parameters

Category: 3-Way Active Studio Monitors
Power: 1100 W
Package Contents: Manual
Colour: Black
USB: Yes
Speakers: 1x 10 "
Type: 3 Bandwidth
Package Quantity (pcs): 1
Controls: Input Sensitivity
Frequency Range: 22 Hz - 50 kHz
Outputs: XLR(AES/EBU)
Inputs: XLR
UK/EU Power supply included: Yes
Sound Pressure Level (SPL): 131 dB
Woofer: 10"
Tweeter: 2"
Power Supply: 240V
Power (Watt): 1100.0
Sound Pressure Level - SPL (dB): 131.0
Middle Speaker: 4"
Height (cm): 43.0
Width (cm): 88.5
Depth (cm): 50.0
Net Weight (kg): 72.6
Crossover Frequency (kHz): 3.0
EQ: Yes
Amplification configuration: Tri-amp
Bass Reflex Port: Yes
LF Driver Type: Hexacone
HF Driver Type: S-ART tweeter
LF Driver Power Amp: 700W
HF Driver Power Amp: 100W
Crossover Frequency: 250 Hz
MF Driver Type: Carbon-composite
MF Driver Power Amp: 300W
Power amount: 1100.0
Power measure: w
Type amount: 3.0
Type measure: bandwidth
Sound Pressure Level (SPL) amount: 131.0
Sound Pressure Level (SPL) measure: db
Power Supply amount: 240.0
Power Supply measure: v
LF Driver Power Amp amount: 700.0
LF Driver Power Amp measure: w
HF Driver Power Amp amount: 100.0
HF Driver Power Amp measure: w
Crossover Frequency amount: 250.0
Crossover Frequency measure: hz
MF Driver Power Amp amount: 300.0
MF Driver Power Amp measure: w
