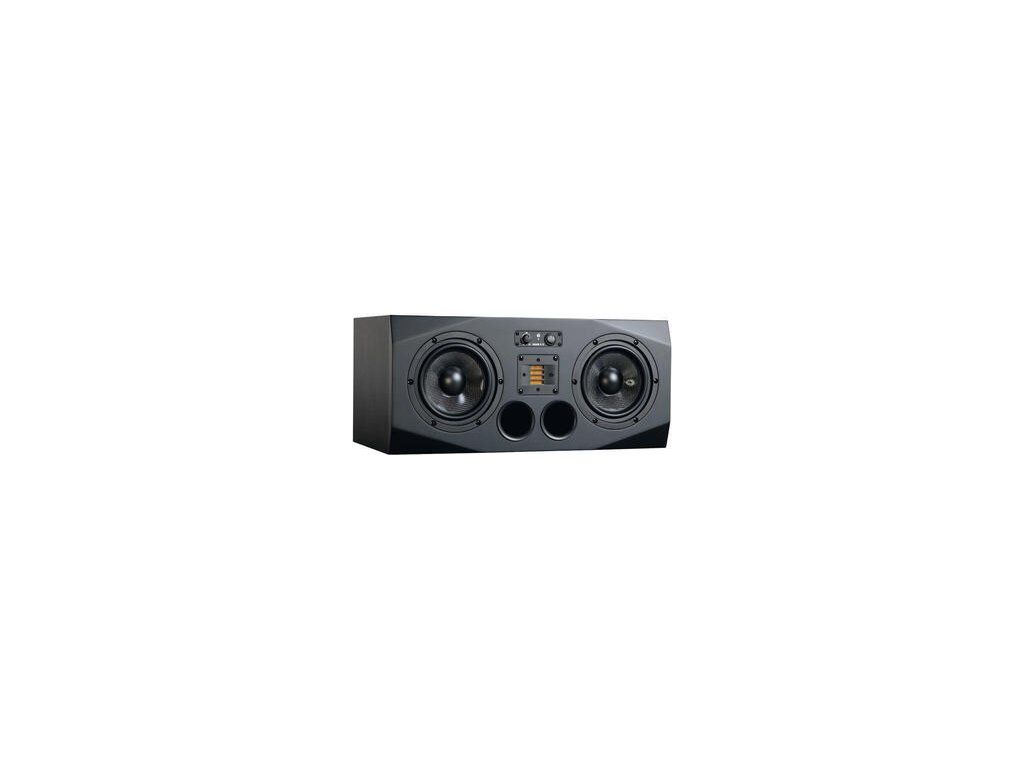

Adam A77X

Code: PR-60138
Not rated
€799
Out of Stock
The item has been sold out…
The A77X is a horizontally designed monitor that combines all of the technical innovations in the AX-Series. Due to its powerful, compression-free sound reproduction and excellent radiation characteristics, it is suitable both for nearfield and midfield monitoring.The special feature of the A77X is its 2 1⁄2-way system. Both 7” woofers start to work together at 38 Hz and at 400 Hz one woofer fades out and only the second woofer continues to operate in the midrange up to 3 kHz. This prevents interferences and possible phase cancellation in the critical midrange. Even though frequency transitions and potential distortions lie outside these areas, the human ear is particularly sensitive to midrange frequencies.Especially noteworthy in the A77X is the extremely wide stereo foundation and brilliant stereo imaging. Treble and mids are reproduced with three-dimensional realism and the lows are, as expected from a double woofer design, massive without compromising on precision.Warranty: 2 years + 3 years after registration in the MyADAM customer zoneFree plugins: In MyADAM user area you will find a personalized voucher code for the current plugin under the tab FREE PLUGINS, where you can also find detailed instructions on how to redeem it. You can use the plugins with almost any digital audio workstation like Ableton and Pro Tools.

Detailed information

Product detailed description

The A77X is a horizontally designed monitor that combines all of the technical innovations in the AX-Series. Due to its powerful, compression-free sound reproduction and excellent radiation characteristics, it is suitable both for nearfield and midfield monitoring.The special feature of the A77X is its 2 1⁄2-way system. Both 7” woofers start to work together at 38 Hz and at 400 Hz one woofer fades out and only the second woofer continues to operate in the midrange up to 3 kHz. This prevents interferences and possible phase cancellation in the critical midrange. Even though frequency transitions and potential distortions lie outside these areas, the human ear is particularly sensitive to midrange frequencies.Especially noteworthy in the A77X is the extremely wide stereo foundation and brilliant stereo imaging. Treble and mids are reproduced with three-dimensional realism and the lows are, as expected from a double woofer design, massive without compromising on precision.Warranty: 2 years + 3 years after registration in the MyADAM customer zoneFree plugins: In MyADAM user area you will find a personalized voucher code for the current plugin under the tab FREE PLUGINS, where you can also find detailed instructions on how to redeem it. You can use the plugins with almost any digital audio workstation like Ableton and Pro Tools.

Additional parameters

Category: 3-Way Active Studio Monitors
Power: 250 W
Package Contents: Manual
Colour: Black
Speakers: 2x 7 "
Type: 3 Bandwidth
Package Quantity (pcs): 1
Controls: Input Sensitivity
Frequency Range: 38 Hz - 50 kHz
Inputs: XLR
UK/EU Power supply included: Yes
Sound Pressure Level (SPL): 114 dB
Woofer: 7"
Tweeter: 2"
Power Supply: 240V
Power (Watt): 250.0
Sound Pressure Level - SPL (dB): 114.0
Height (cm): 23.5
Width (cm): 53.0
Depth (cm): 28.0
Net Weight (kg): 12.8
Crossover Frequency (kHz): 3.0
EQ: Yes
Amplification configuration: Tri-amp
Bass Reflex Port: Yes
LF Driver Type: Carbon fibers
HF Driver Type: X-ART tweeter
LF Driver Power Amp: 100W
HF Driver Power Amp: 50W
Power amount: 250.0
Power measure: w
Type amount: 3.0
Type measure: bandwidth
Sound Pressure Level (SPL) amount: 114.0
Sound Pressure Level (SPL) measure: db
Power Supply amount: 240.0
Power Supply measure: v
LF Driver Power Amp amount: 100.0
LF Driver Power Amp measure: w
HF Driver Power Amp amount: 50.0
HF Driver Power Amp measure: w
